The Link - NX

Description

The Link is our no nonsense, go anywhere E-bike. Featuring 160mm front and rear suspension travel and a progressively tuned four bar suspension layout, this bike is ready for to take on anything you can throw at it. The 85nm motor and 630Wh battery mean there is plenty of power and range to get you to the highest peaks or for cramming in as many party laps as possible with the squad.



There are lots of things we like about this bike, but here are the main things:

85N.m Shimano EP8 Motor (32Kph)

630Wh Shimano Battery

160mm front and rear suspension travel

Large standard size sealed bearings

Lyne Components dropper post, cockpit and rims

Interested in more info about The Link, check out our Design Notes section for more.



Product form

The Link- NX

R 90,000.00Incl. VAT

SKU: LNKNX-S

    • Frame: Alloy
    • Wheel Size: 29"
    • Suspension Travel: 160mm
    • Drive Unit: Shimano EP8
    • Battery: Shimano 630Wh

      Description

      The Link is our no nonsense, go anywhere E-bike. Featuring 160mm front and rear suspension travel and a progressively tuned four bar suspension layout, this bike is ready for to take on anything you can throw at it. The 85nm motor and 630Wh battery mean there is plenty of power and range to get you to the highest peaks or for cramming in as many party laps as possible with the squad.



      There are lots of things we like about this bike, but here are the main things:

      85N.m Shimano EP8 Motor (32Kph)

      630Wh Shimano Battery

      160mm front and rear suspension travel

      Large standard size sealed bearings

      Lyne Components dropper post, cockpit and rims

      Interested in more info about The Link, check out our Design Notes section for more.



      Features

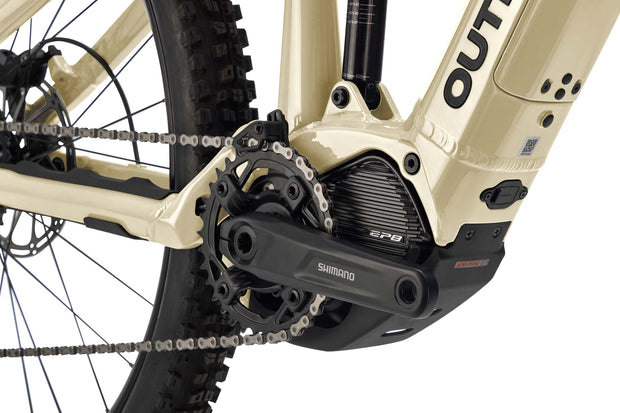

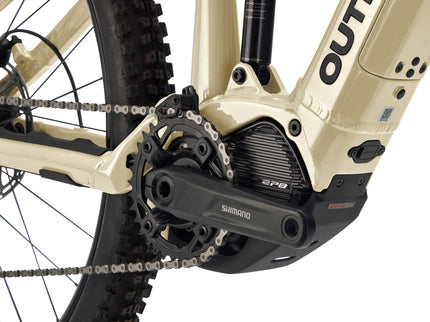

      • Outer Cycles The Link NX Shimano EP8 Motor View

        85N.m. Drive Unit

        The Shimano EP8 drive system delivers plenty of power letting you conquer your nearest mountain.

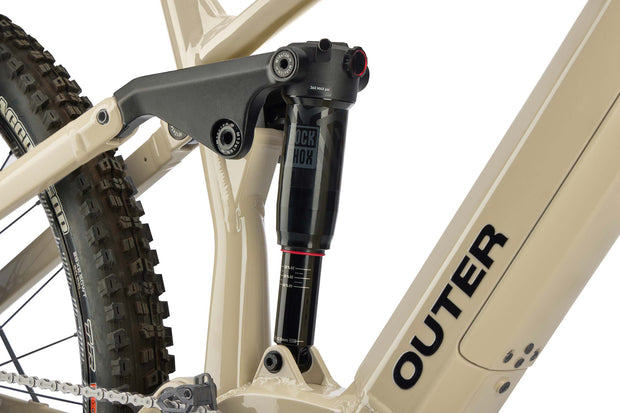

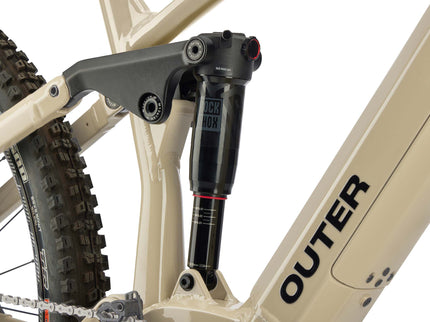

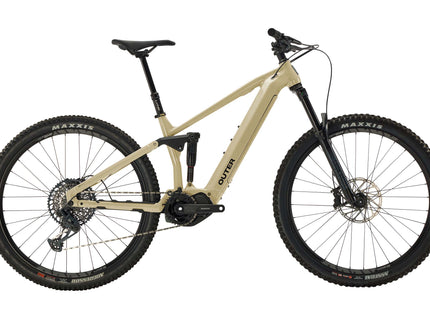

      • Outer Cycles The Link NX Side View with Rockshox Deluxe shock

        160mm

        160mm front and rear suspension travel mean The Link E-bike is ready for action when things get rough.

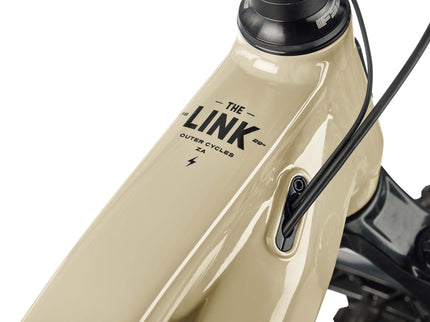

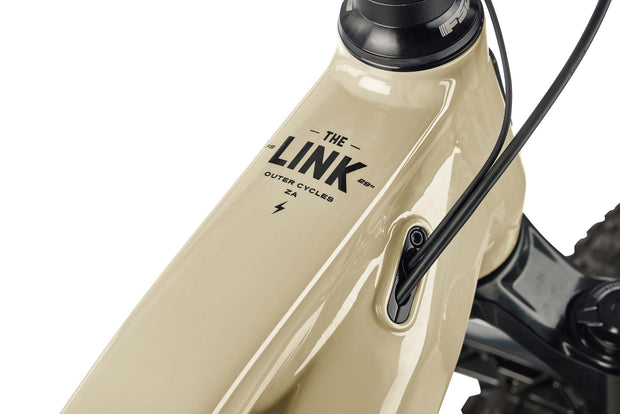

      • <strong>Integrated Frame</strong>

        Integrated Frame

        Fully integrated battery and cable routing result in a clean look.

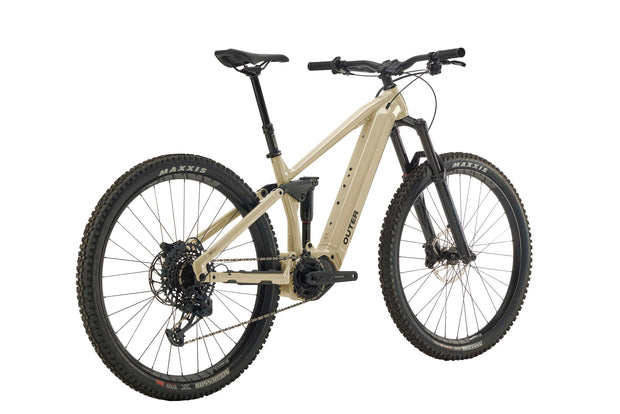

      • <strong>630 Wh Battery</strong>

        630 Wh Battery

        Unlock new possibilities and experience unmatched freedom on every ride.

      Specifications

      Click To Show
      Frame Alloy 29” Boost, 160mm travel, UDH hanger, Integrated Battery
      Wheel size 29” front and rear
      Fork Rockshox 35 Gold RL 160mm 44mm offset
      Rear Shock Rockshox Deluxe Select R 205 x 62.5mm
      Rear Derailleur SRAM GX Eagle 12 Speed
      Shifter SRAM NX Eagle 12 Speed
      Cassette SRAM CS PG1230 Eagle 11-50T
      Chain SRAM NX Eagle
      Headset FSA No.57
      Rear Tyre Maxxis Aggressor, 29x2.5WT, 120TPI x2, Foldable, DD/TR
      Front Tyre Maxxis Assegai, 29X2.5WT, 120TPI, Foldable, 3CT MaxxTerra/EXO+/TR
      Wheelset Lyne AMP HD rims, Novatec Hubs
      Brakes SRAM DB8
      Rotors SRAM Centerline 200mm front, 180mm rear
      Crankset Shimano M600 170mm, 34T Chainring
      Handlebars Lyne AMP 20mm rise, 800mm Width, Integrated cable routing
      Stem Lyne AMP 35 Bar Clamp, 35mm S & M, 50mm L & XL
      Seatpost Lyne Contour V2.0 Internal Dropper Post - 150mm travel
      Saddle Outer 140mm
      Grips Lyne Cosmic Cactus Lock-on Black
      Battery Shimano 630Wh integrated
      Drive Unit Shimano EP8 (32 km/h)
      Battery Charger Shimano EC-E8004
      Frame Warranty 5 Years
      Weight +/-25.2 kg (size small, please allow for some deviation)

      Geomtery

      Click to Show
      S M L XL
      (A) Seat Tube length 390 415 440 460
      (B) Reach 420 450 470 490
      (C) Top Tube Length (Effective) 575 606 631 655
      (D) Head Tube Angle 65 65 65 65
      (E) Effective Seat Tube Angle 76 76 76 76
      (F) Chainstay Length 460 460 460 460
      (G) BB Drop 30 30 30 30
      (H) Head Tube Length 110 110 125 140
      (I) Wheelbase 1213 1245 1271 1298
      (J) Stack 623 628 642 655
      (K) Fork Length 576 576 576 576
      (L) Seat Post Insertion Depth 186 211 236 256

      Size Chart

      Click to Show

      Bike Size

      Please note, our size chart is a recommendation and will not work for every size rider. When selecting the ideal bike size, especially if you find yourself on the edge of the recommended height range for two sizes, it's highly recommended to test ride both options or consult a bike fit expert for their opinion. Another method of finding the right fit is to compare the geometry of your current bike, or one you are comfortable on, and compare it to our geometry numbers.

      Bike Handling

      If you are in between sizes then you should consider the bike handling characteristics that appeal to you. Larger bikes tend to feel more stable and planted and require more body language to manoeuvre. The longer wheelbase will also help with very steep scenarios. Smaller bikes will feel more agile and are generally more manoeuvrable through tighter trails. The shorter wheelbase will feel less stable at high speed and on very steep trails.

      Unique Body Dimensions

      As we know, we are not all made the same. You may want to take into account your unique body dimensions, as longer legs and a shorter torso may steer you toward a smaller size, while a more extended torso and arms might lead you to opt for a larger frame.

      Frame Size S M L XL
      Rider Height (cm) 150-163 163-173 173-183 183-193
