The Link - GX

Description

The Link is our no-nonsense, go-anywhere E-bike. Featuring 160mm front and rear suspension travel and a progressively tuned four bar suspension layout, this bike is ready to take on anything you can throw at it. The 85nm motor and 630Wh battery mean there is plenty of power and range to get you to the highest peaks or for cramming in as many party laps as possible with the squad.

There are lots of things we like about this bike, but here are the main things:

85N.m Shimano EP8 Motor (32Kph)

630Wh Shimano Battery

160mm front and rear suspension travel

Large standard size sealed bearings

Lyne Components dropper post, cockpit and rims

Interested in more info about The Link, check out our Design Notes section for more.

Product form

The Link- GX

R 115,000.00Incl. VAT

    • Frame: Alloy
    • Wheel Size: 29"
    • Suspension Travel: 160mm
    • Drive Unit: Shimano EP8
    • Battery: Shimano 630Wh

    Description

    The Link is our no-nonsense, go-anywhere E-bike. Featuring 160mm front and rear suspension travel and a progressively tuned four bar suspension layout, this bike is ready to take on anything you can throw at it. The 85nm motor and 630Wh battery mean there is plenty of power and range to get you to the highest peaks or for cramming in as many party laps as possible with the squad.

    There are lots of things we like about this bike, but here are the main things:

    85N.m Shimano EP8 Motor (32Kph)

    630Wh Shimano Battery

    160mm front and rear suspension travel

    Large standard size sealed bearings

    Lyne Components dropper post, cockpit and rims

    Interested in more info about The Link, check out our Design Notes section for more.

    Features

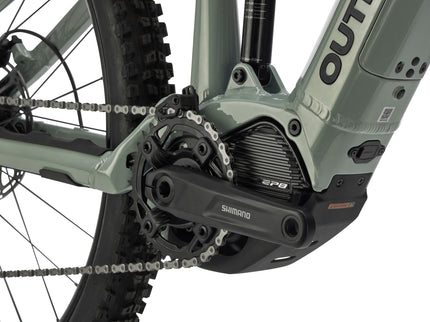

    • <strong>85N.m. Drive Unit</strong>

      85N.m. Drive Unit

      The Shimano EP8 drive system delivers plenty of power letting you conquer your nearest mountain.

    • <strong>160mm </strong>

      160mm

      160mm front and rear suspension travel mean The Link E-bike is ready for action when things get rough.

    • <strong>Integrated Frame</strong>

      Integrated Frame

      Fully integrated battery and cable routing result in a clean look.

    • <strong>630 Wh Battery</strong>

      630 Wh Battery

      Unlock new possibilities and experience unmatched freedom on every ride.

    Specifications

    Click To Show
    Frame Alloy 29” Boost, 160mm travel, UDH hanger, Integrated Battery
    Wheel size 29” front and rear
    Fork Rockshox ZEB Select 160mm 44mm offset

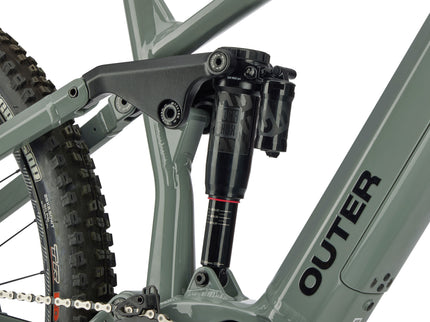

    Rear Shock Rockshox Super Deluxe Select+ 205x62.5mm

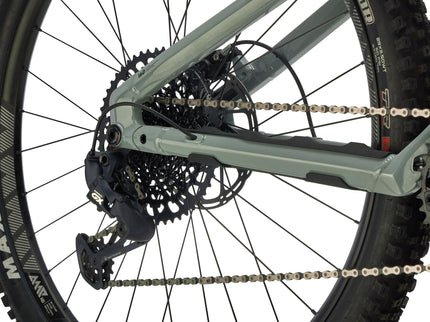

    Rear Derailleur SRAM GX Eagle 12 Speed
    Shifter SRAM GX Eagle 12 Speed
    Cassette SRAM CS XG 1275 Eagle 10-52T
    Chain SRAM GX Eagle
    Headset FSA No.57
    Rear Tyre Maxxis Aggressor, 29x2.5WT, 120TPI x2, Foldable, DD/TR
    Front Tyre Maxxis Assegai, 29X2.5WT, 120TPI, Foldable, 3CT MaxxTerra/EXO+/TR
    Wheelset Lyne AMP HD rims, Novatec Hubs
    Brakes SRAM Code R
    Rotors SRAM Centerline 200mm front, 180mm rear
    Crankset Shimano M600 170mm, 34T Chainring

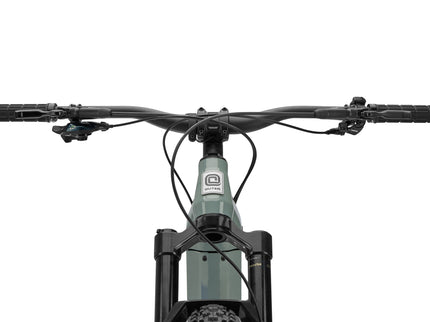

    Handlebars Lyne AMP 20mm rise, 800mm Width, Integrated cable routing
    Stem Lyne AMP 35 Bar Clamp, 35mm S & M, 50mm L & XL
    Seatpost Lyne Contour V2.0 Internal Dropper Post - 150mm travel
    Saddle Outer 140mm
    Grips Lyne Cosmic Cactus Lockon Black
    Battery Shimano 630Wh integrated
    Drive Unit Shimano EP8 (32 km/h)
    Battery Charger Shimano EC-E8004
    Frame Warranty 5 Years
    Weight +/-25.2 kg (size small, please allow for some deviation)

    Geomtery

    Click to Show
    S M L XL
    (A) Seat Tube length 390 415 440 460
    (B) Reach 420 450 470 490
    (C) Top Tube Length (Effective) 575 606 631 655
    (D) Head Tube Angle 65 65 65 65
    (E) Effective Seat Tube Angle 76 76 76 76
    (F) Chainstay Length 460 460 460 460
    (G) BB Drop 30 30 30 30
    (H) Head Tube Length 110 110 125 140
    (I) Wheelbase 1213 1245 1271 1298
    (J) Stack 623 628 642 655
    (K) Fork Length 576 576 576 576
    (L) Seat Post Insertion Depth 186 211 236 256

    Size Chart

    Click to Show

    Bike Size

    Please note, our size chart is a recommendation and will not work for every size rider. When selecting the ideal bike size, especially if you find yourself on the edge of the recommended height range for two sizes, it's highly recommended to test ride both options or consult a bike fit expert for their opinion. Another method of finding the right fit is to compare the geometry of your current bike, or one you are comfortable on, and compare it to our geometry numbers.

    Bike Handling

    If you are in between sizes then you should consider the bike handling characteristics that appeal to you. Larger bikes tend to feel more stable and planted and require more body language to manoeuvre. The longer wheelbase will also help with very steep scenarios. Smaller bikes will feel more agile and are generally more manoeuvrable through tighter trails. The shorter wheelbase will feel less stable at high speed and on very steep trails.

    Unique Body Dimensions

    As we know, we are not all made the same. You may want to take into account your unique body dimensions, as longer legs and a shorter torso may steer you toward a smaller size, while a more extended torso and arms might lead you to opt for a larger frame.

    Frame Size S M L XL
    Rider Height (cm) 150-163 163-173 173-183 183-193
