Shale Frameset

Description

Shale – Built for Big Moves, Dialed for Every Line

The Shale is our take on a modern enduro machine—capable, confident, and ready for whatever the trail throws at it. Sharing the same proven suspension platform as our Link E-bike, it’s built for riders who want a bike that feels stable at speed, efficient on the climbs, and controlled in the rough. Its progressive geometry strikes a balance between confidence and agility, with a slack head angle that keeps things steady on steep descents, a steep seat tube that positions you efficiently for climbing, and a moderately low bottom bracket that helps the bike feel planted without losing responsiveness.

A flip chip allows you to switch between a mullet or full 29” setup, letting you fine-tune the ride to match your style. The progressive suspension design ensures small bump sensitivity while still providing the support needed for hard hits and big landings. Standard-size sealed bearings throughout make maintenance straightforward, so you can spend more time riding and less time in the workshop.

Each frameset includes a RockShox Super Deluxe Shock, FSA headset, thru-axle, chainstay protector, and hanger.

Product form

Shale Frameset

R 30,000.00Incl. VAT

    • Frame: Alloy
    • Wheel Size: 29"or Mullet
    • Suspension Travel: 160mm

    Description

    Shale – Built for Big Moves, Dialed for Every Line

    The Shale is our take on a modern enduro machine—capable, confident, and ready for whatever the trail throws at it. Sharing the same proven suspension platform as our Link E-bike, it’s built for riders who want a bike that feels stable at speed, efficient on the climbs, and controlled in the rough. Its progressive geometry strikes a balance between confidence and agility, with a slack head angle that keeps things steady on steep descents, a steep seat tube that positions you efficiently for climbing, and a moderately low bottom bracket that helps the bike feel planted without losing responsiveness.

    A flip chip allows you to switch between a mullet or full 29” setup, letting you fine-tune the ride to match your style. The progressive suspension design ensures small bump sensitivity while still providing the support needed for hard hits and big landings. Standard-size sealed bearings throughout make maintenance straightforward, so you can spend more time riding and less time in the workshop.

    Each frameset includes a RockShox Super Deluxe Shock, FSA headset, thru-axle, chainstay protector, and hanger.

    Features

    • <strong>Progressive Suspension Design</strong>

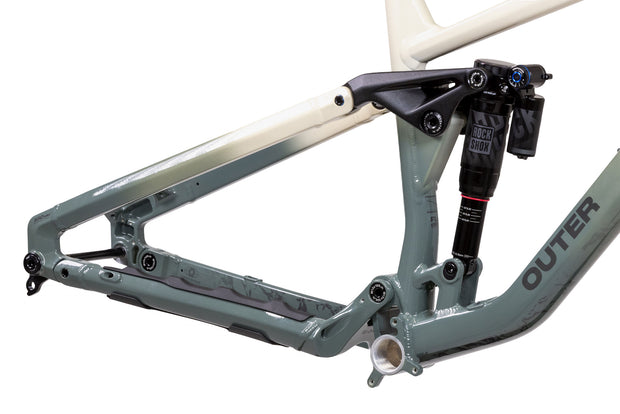

      Progressive Suspension Design

      A refined leverage curve delivers plush small bump sensitivity while maintaining mid-stroke support and bottom-out resistance. Whether you’re charging through rock gardens or sending big lines, the suspension stays composed.

    • <strong>Flip Chip Versatility</strong>

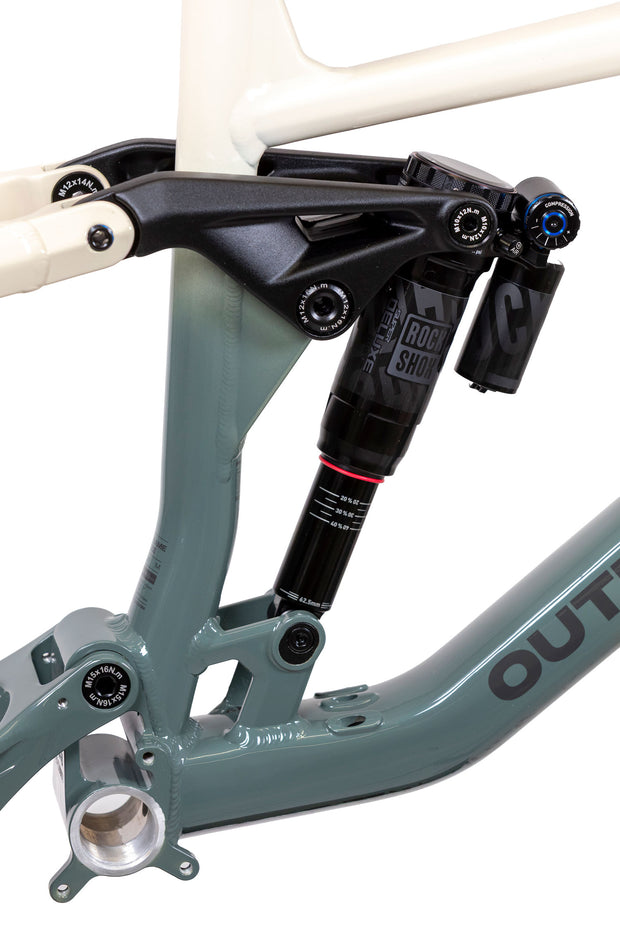

      Flip Chip Versatility

      Easily switch between a mullet or full 29” setup using the adjustable flip chip. Fine-tune your ride to match your style, whether you want the agility of a mixed-wheel setup or the all-out speed of full 29"

    • <strong>Easy Maintenance</strong>

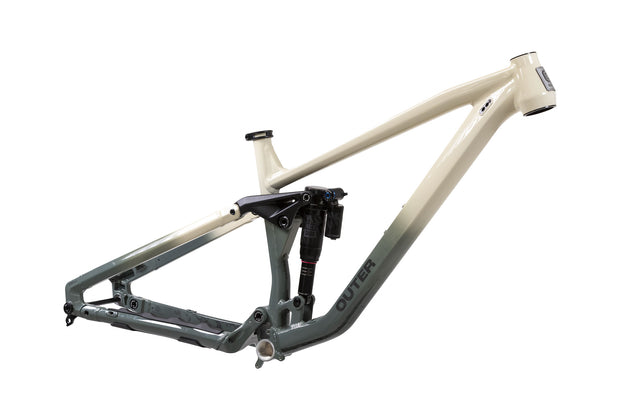

      Easy Maintenance

      Standard-size sealed bearings make servicing hassle-free, ensuring your frame stays smooth and reliable for seasons of hard riding. Less time wrenching, more time shredding.

    • <strong>Dialed Enduro Geometry</strong>

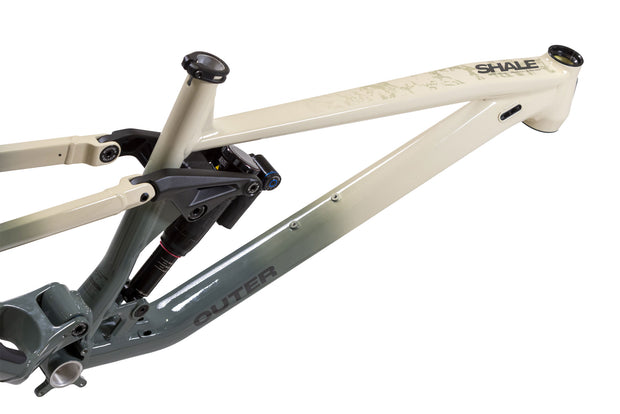

      Dialed Enduro Geometry

      A slack head angle for stability at speed, a steep seat tube for efficient climbing, and a moderately low bottom bracket for a planted yet responsive feel. The Shale is built to balance confidence and agility.

    Specifications

    Click To Show
    Frame Alloy 29” Boost, 160mm travel, UDH hanger, Internal Cable Routing, Compatible Fork: 170mm 44mm offset
    Wheel size 29” or Mullet
    Rear Shock Rockshox Super Deluxe Select+ 205 x 62.5mm
    Headset FSA No.57
    Seat Post Clamp Outer 36.1mm
    Rear Thru Axle Outer Stealth
    Frame Warranty 5 Years
    Weight 4.5 kg (size Medium Including Shock, please allow for some deviation)

    Geomtery

    Click to Show

    29" Front and Rear - 170mm Fork, Flip Chip in the Low Position

    S M L XL
    Seat Tube (Effective) 380 420 450 460
    Head Angle (Low) 63.5° 63.5° 63.5° 63.5°
    Seat Tube Angle 77° 77° 77° 77°
    Chainstay Length 448 448 448 448
    BB Drop 25 25 25 25
    BB Height 353 353 353 353
    Head Tube Length 95 100 110 130
    Fork Length (AC) 587 587 587 587
    Fork Offset 44 44 44 44
    Wheelbase 1221 1253 1282 1311
    Stack 616 620 629 647
    Reach 430 460 485 505

    Mullet (27.5" Rear) - 170mm Fork, Flip Chip in the High Position

    S M L XL
    Seat Tube (Effective) 380 420 450 460
    Head Angle (High) 62.8° 62.8° 62.8° 62.8°
    Seat Tube Angle 76.3° 76.3° 76.3° 76.3°
    Chainstay Length 448 448 448 448
    BB Drop (Low) 14.5 14.5 14.5 14.5
    BB Height 350 350 350 350
    Head Tube Length 95 100 110 130
    Fork Length (AC) 587 587 587 587
    Fork Offset 44 44 44 44
    Wheelbase 1221 1253 1282 1311
    Stack 616 620 629 647
    Reach 430 460 485 505

    Size Chart

    Click to Show

    Bike Size

    Please note, our size chart is a recommendation and will not work for every size rider. When selecting the ideal bike size, especially if you find yourself on the edge of the recommended height range for two sizes, it's highly recommended to test ride both options or consult a bike fit expert for their opinion. Another method of finding the right fit is to compare the geometry of your current bike, or one you are comfortable on, and compare it to our geometry numbers.

    Bike Handling

    If you are in between sizes then you should consider the bike handling characteristics that appeal to you. Larger bikes tend to feel more stable and planted and require more body language to manoeuvre. The longer wheelbase will also help with very steep scenarios. Smaller bikes will feel more agile and are generally more manoeuvrable through tighter trails. The shorter wheelbase will feel less stable at high speed and on very steep trails.

    Unique Body Dimensions

    As we know, we are not all made the same. You may want to take into account your unique body dimensions, as longer legs and a shorter torso may steer you toward a smaller size, while a more extended torso and arms might lead you to opt for a larger frame.

    Frame Size S M L XL
    Rider Height (cm) 150-163 163-173 173-183 183-193
