Built to challenge what a full-power e-bike should look and feel like, the Outer Alterra blends lightweight handling, clean industrial design, and serious trail capability into one refined package. With a full carbon frame, 150mm of rear travel, a 160mm fork, and the latest Avinox drive system, the Alterra delivers the power to push harder, climb faster, and ride further—without the bulk that often comes with it. Designed in Cape Town for riders who want a bike that feels agile, powerful, and genuinely connected to the trail.

Product form

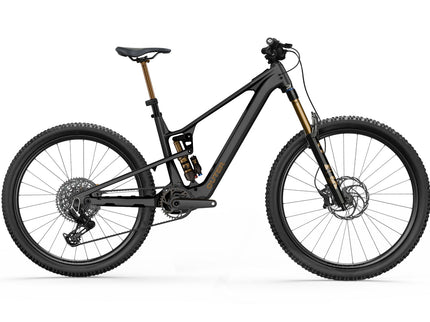

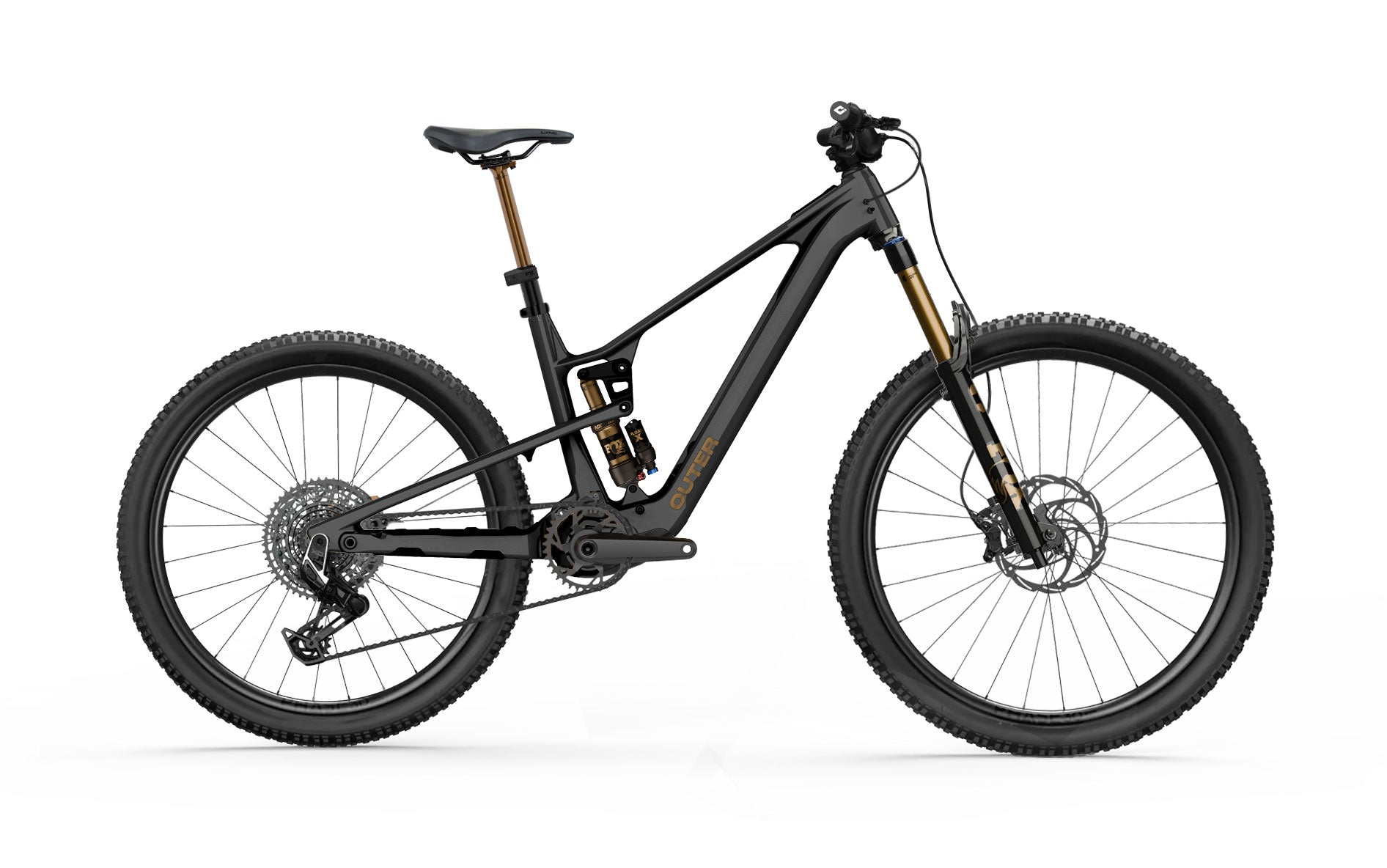

Alterra CF1

Estimated retail R185 000

Coming soon - enquire now
  • Full Carbon Frame
  • Mullet - 29" Front and 27.5" Rear Wheels
  • Suspension Travel: 150mm Rear/160mm Front
  • Drive Unit: Avinox M2S 150nm.
  • Battery: Avinox 800Wh

Description

Built to challenge what a full-power e-bike should look and feel like, the Outer Alterra blends lightweight handling, clean industrial design, and serious trail capability into one refined package. With a full carbon frame, 150mm of rear travel, a 160mm fork, and the latest Avinox drive system, the Alterra delivers the power to push harder, climb faster, and ride further—without the bulk that often comes with it. Designed in Cape Town for riders who want a bike that feels agile, powerful, and genuinely connected to the trail.

Features

  • <strong>150N.m. Drive Unit</strong>

    150N.m. Drive Unit

    The Avinox M2S drive system delivers plenty of power letting you conquer your nearest mountain.

  • <strong>150mm Suspension Travel</strong>

    150mm Suspension Travel

    Our unique four bar susepnsion layout offers 150mm of progressive suspension making the Alterra ready for action when things get rough.

  • <strong>Full Carbon Frame</strong>

    Full Carbon Frame

    The Alterra’s full carbon frame delivers a lightweight, responsive ride without compromising on strength or trail confidence.

  • <strong>800 Wh Battery</strong>

    800 Wh Battery

    Unlock new possibilities and experience unmatched freedom on every ride.

Specifications

Click To Show
Frame Full Carbon, Boost, 150mm travel, UDH hanger, Integrated Battery
Wheel size 29” Front 27.5” Rear
Fork Fox 36 Factory 160mm 44mm offset, Grip X2 damper
Rear Shock Fox Float X Factory 210x52.5mm
Rear Derailleur SRAM X0 Eagle Transmission 12 Speed - Wired to the Avinox Motor
Shifter SRAM AXS Pod Controller
Cassette SRAM CS XS 1275 10-52T
Chain SRAM GX Eagle Transmission
Headset FSA No.57
Rear Tyre Maxxis Dissector, 27.5x2.4", 60TPI x2, Foldable, EXO+/TR
Front Tyre Maxxis Assegai, 29x2.5", 120TPI, Foldable, 3CT MaxxTerra/EXO+/TR
Wheelset Lyne AMP Carbon rims, Lyne Hi-Per Hubs
Brakes Shimano XTR M9220 4 Piston
Rotors Shimano SM-RT86 203mm
Crankset e*thirteen Helix Race 160mm, 36T Chainring
Handlebars Outer Carbon 40mm rise, 800mm Width
Stem Lyne AMP 35 Bar Clamp, 35mm M & L, 50mm XL
Seatpost Fox Transfer Neo 30.9 - M & L: 175mm, XL: 200mm
Saddle Lyne Pulse 150mm
Grips Lyne Cosmic Cactus Lockon Black
Battery Avinox 800Wh integrated
Drive Unit Avinox M2S
Battery Charger Avinox 12A Fast Charger
Frame Warranty 5 Years
Weight Estimated +/-20.8 kg

Geometry

Click to Show
M L XL
(A) Seat Tube Length (Effective) 415 430 460
(B) Reach 450 480 510
(C) Top Tube Length (Effective) 596 628 660
(D) Head Tube Angle Low 64.5 64.5 64.5
(E) Seat Tube Angle 77 77 77
(F) Chainstay Length 445 445 445
(G) BB Drop Low 18 18 18
(H) Head Tube Length 110 120 130
(I) Wheelbase 1240 1274 1308
(J) Stack 632 642 651
(K) Fork Length (AC) 576 576 576
(L) Seat Post Insertion Depth 280 300 320
(M) Fork Offset 44 44 44

Size Chart

Click to Show

Bike Size

Please note, our size chart is a recommendation and will not work for every rider. When selecting the ideal bike size, especially if you find yourself on the edge of the recommended height range for two sizes, it's highly recommended to test ride both options or consult a bike fit expert for their opinion. Another method of finding the right fit is to compare the geometry of your current bike, or one you are comfortable on, and match it to our geometry numbers.

Bike Handling

If you are in between sizes, consider the ride feel that appeals to you. Larger bikes tend to feel more stable and planted and require a bit more body movement to manoeuvre. A longer wheelbase offers a smoother and more predictable ride. Smaller bikes will feel more agile and are generally easier to handle when things get tight. The shorter wheelbase will feel less stable at high speeds, but more responsive.

Unique Body Dimensions

As we know, we are not all made the same. You may want to take into account your unique body dimensions, as longer legs and a shorter torso may steer you toward a smaller size, while a longer torso and arms might lead you to opt for a larger frame.

Size Guideline

M
162 178
L
176 190
XL
188 200
